CMM-30

1 / 6
CMM-30
Index: WMGBCMM30
Industrial Multimeter
Description
Technical Specification
Files
  • Description

    Compact and reliable industrial multimeter Sonel CMM-30 is a device combining versatility, modernity and extraordinary durability. The instrument houses 11 basic measuring functions. Additional functions such as the PEAK function (displaying the peak value of the measured signal), REL function (making relative measurements) and many others complement the capabilities of the device. All this contributes to the meter's highly versatile nature. Due to wireless communication with the app on your phone, it is possible to remotely read and record measurements from hard-to-reach locations. The display has an automatic backlight function - the brightness level of the screen and control panel adapts to the lighting conditions. An additional advantage is the built-in torch, which makes it possible to work in the dark.

    The CMM-30 features an innovative design that combines a high level of durability with ergonomic handling even when wearing dielectric gloves. The instrument is equipped with a sealed casing with IP67 protection, which ensures high resistance even to drops.

    Visibility in all conditions

    Darkness at the workplace is not an issue thanks to the built-in flashlight. Automatic backlight of the display, buttons and rotary switch enables to carry out measurements in all lighting conditions.

    Unique design

    Using the latest technologies, we have created a compact device for working in the toughest conditions. The rubber housing reduces the effects of liquid pollution and falls (IP67 ingress protection).

    Multifunctionality

    CMM-30 multimeter provides unique versatility with its 11 basic measurement functions and additional features, including relative measurement, measurement of minimum, maximum and average values or peak value measurement.

    Safety and comfort

    Sonel CMM-30 meets the safety requirements of CAT III 1000 V / CAT IV 600 V. The ergonomic housing provides a firm grip and convenient function selection – also in protecting gloves.

    Wireless communication

    Transfer measurement data via Bluetooth, in „live” mode, to the Sonel Multimeter Mobile application. This allows to record and store the results and include additional description or photos. You can also share measurement data as an e-mail attachment.

  • Technical Specification
    Measurement functions Range Resolution Accuracy
    AC voltage up to 1000 V from 0.001 V from ±(1.0% m.v. + 5 digits)
    DC voltage up to 1000 V from 0.1 mV from ±(0.5% m.v. + 8 digits)
    AC / DC current up to 10.00 A from 0.1 μA from ±(1.0% m.v. + 3 digits)
    Resistance up to 60.00 MΩ from 0.1 Ω from ±(1.5% m.v. + 5 digits)
    Frequency up to 9.999 kHz from 0.001 Hz ±(1.0% m.v. + 5 digits)
    Capacity up to 6000 µF from 0.01 nF from ±(3.0% m.v. + 5 digits)
    Duty cycle (%) 20.0…80.0% 0.1% ±(1.2% m.v. + 2 digits)
    Temperature measurement -20…+760ºC
    -4…+1400ºF
    0.1ºC
    0.1ºF
    ±(1.0% m.v. + 5ºC)
    ±(1.0% m.v. + 9ºF)
    Continuity / Diode test ✓ / ✓

    “m.v.” - measured value

    Basic features:

    • Counting: 6000 digits
    • HOLD
    • Manual / automatic range selection

    Advanced features:

    • MIN / MAX
    • AC+DC measurement
    • PEAK HOLD
    • Relative measurement REL
    • TRMS measurement
    • Memory: in mobile application
    • Bluetooth communication

    Other features:

    • Easy access to A / mA fuses
    • Auto-off
    • Empty battery indicationi
    • Beeper
    • Integrated flashlight
    • Display:
      • Type: segment-based LCD, 4 digits
      • Display backlight: automatic and manual

  • Files

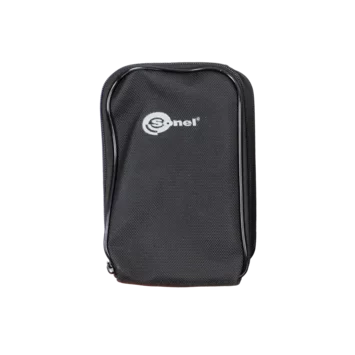

Basic accessories
